Portek Post Driver
Call for Price 07702 293 727

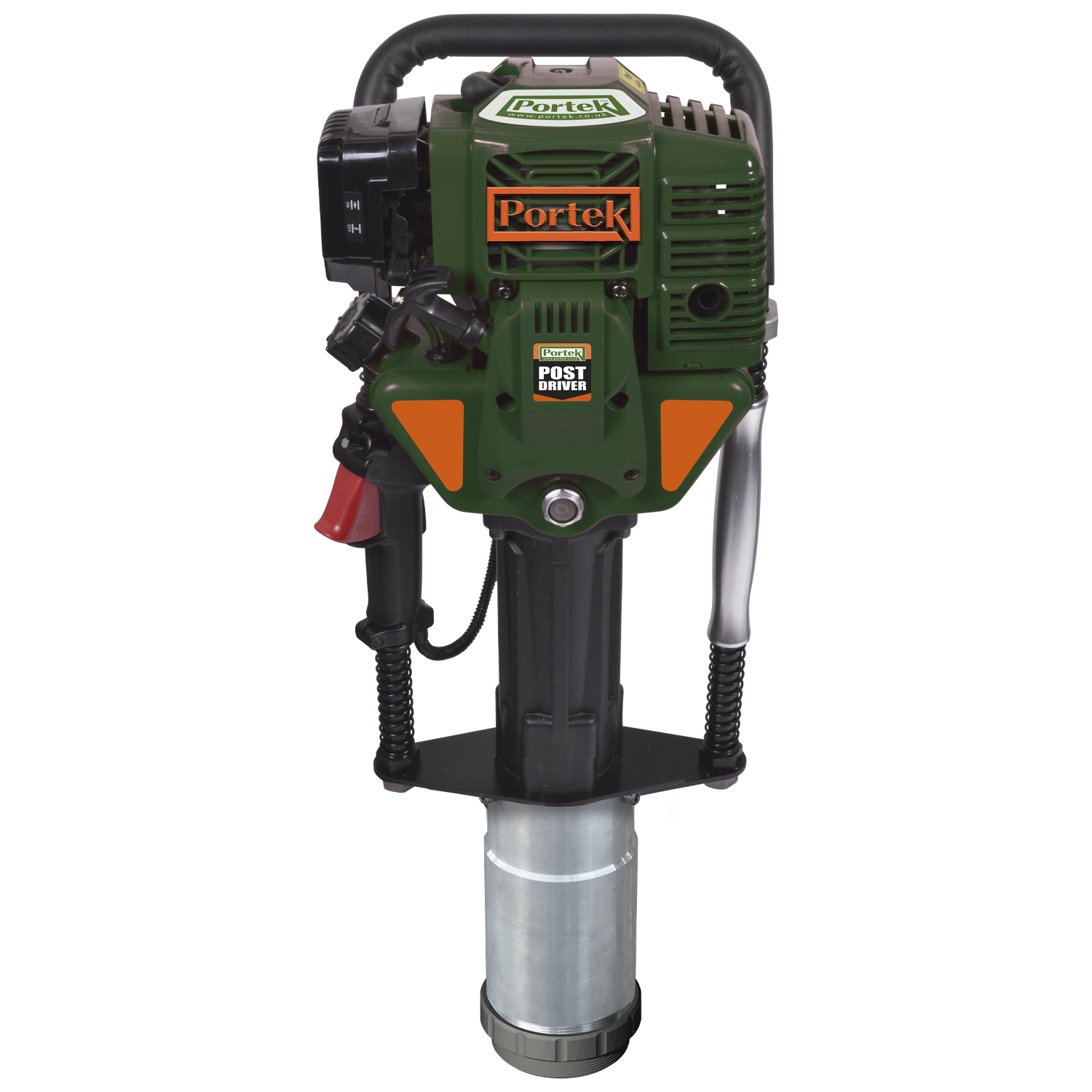

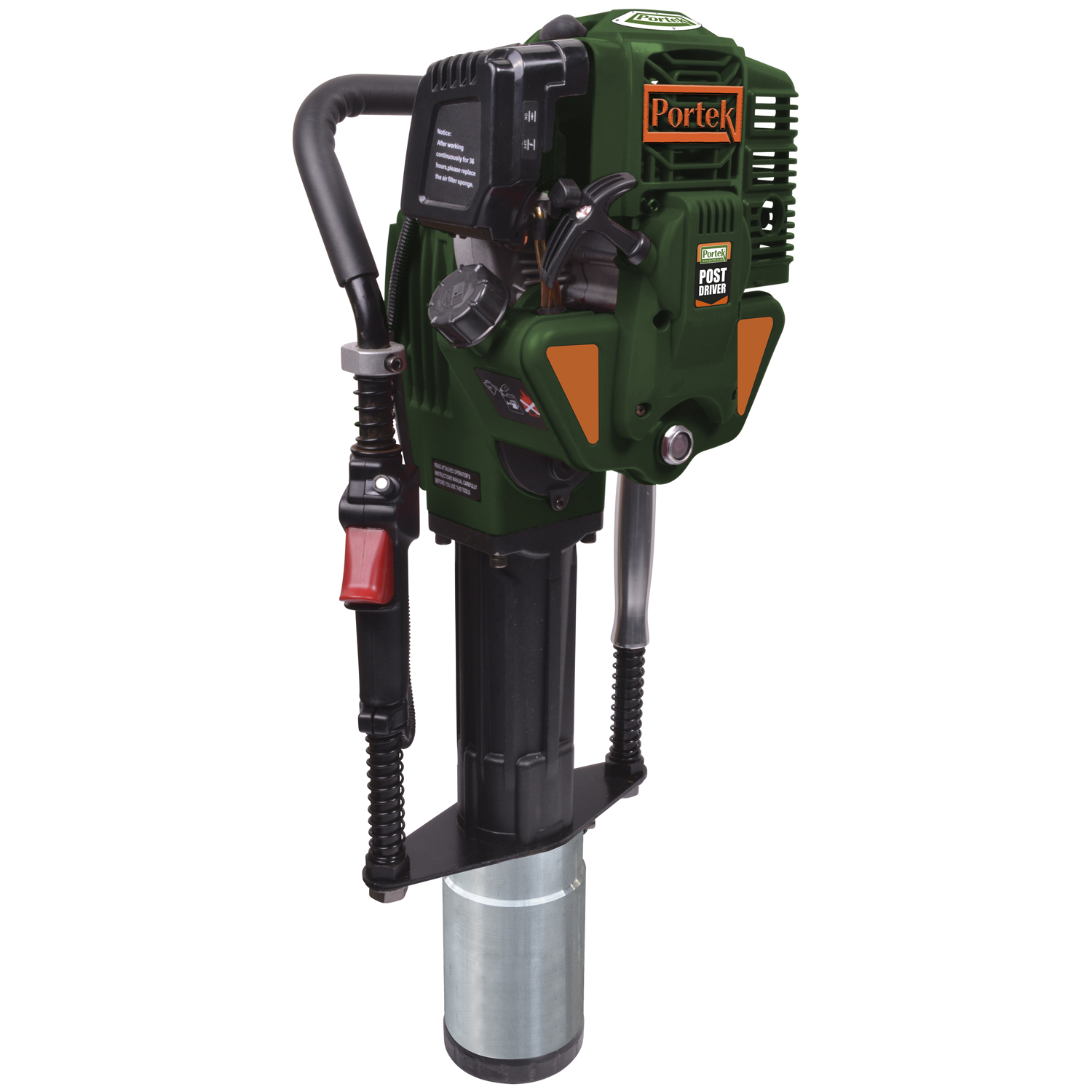

Powered by a single cylinder, air-cooled, 2 stroke petrol engine the Portek Post Driver is a high-speed, heavy duty driving power tool.
This heavy duty and easy to use Post Driver has a high impact hammer action to drive fencing posts, signs and tree stakes or pegs into the ground within a matter of seconds. The versatile 2 stroke engine enables the unit to be left idling even on its side in between driving in a series of fence posts.
Description
Features
- Drives up to 4″ round and square posts with ease
- Max power and speed: 1500W / 9,000rpm
- Max torque and speed: 2.5N.m / 5,000rpm
- Impact frequency: 700 ~ 1,350rpm
- Impact energy: 20 ~ 55J
- Max power output: <1.42kW
- Capacity: 52cc
- x3 piling socket retainer options
Specifications
| Size: | 805 × 305 × 270mm |
| Power / Speed: | 1500W / 9,000rpm |
| Engine: | Single cylinder, air-cooled, 2 stroke petrol |
| Capacity: | 52cc |
| Max. Power Output: | <1.42kW |
| Fuel Mixture: | 25:1 – petrol:oil |
| Nett Weight: | 21.0 Kg |
Piling Socket Sizes
70mm – 100mm (2.75” – 4”)
50mm – 69mm (2” – 2.75”)
20mm – 49mm (0.75” – 2”)
4″ Round Post Holder (Part No. 075/02):
Includes reducing adaptor
This post holder can be fitted to the Post Driver as an alternative to the original fitted post holder. It can be used for posts ranging from 3/4″ to 4″ diameter (when used with reducing adaptor and sizing rings).
It can be used without further attachments for 4″ diameter posts. For smaller posts the reducing adaptor should be screwed onto the end of the post holder, followed by a plastic sizing ring screwed on to the adaptor.
4″ Square Post Holder (Part No. 075/01):
An additional post holder is available which can be fitted to the Post Driver as an alternative to the standard. This post holder can be used for posts of 4″ square, 4×3″ and 3″ square in size.
It can be used without the bolts for 4″ posts. For smaller posts simply insert the reducing bolts through the bottom of the post holder casing, you can either use 2 bolts to allow a 4×3″ post or 4 bolts to allow a 3″ square post to be driven.
