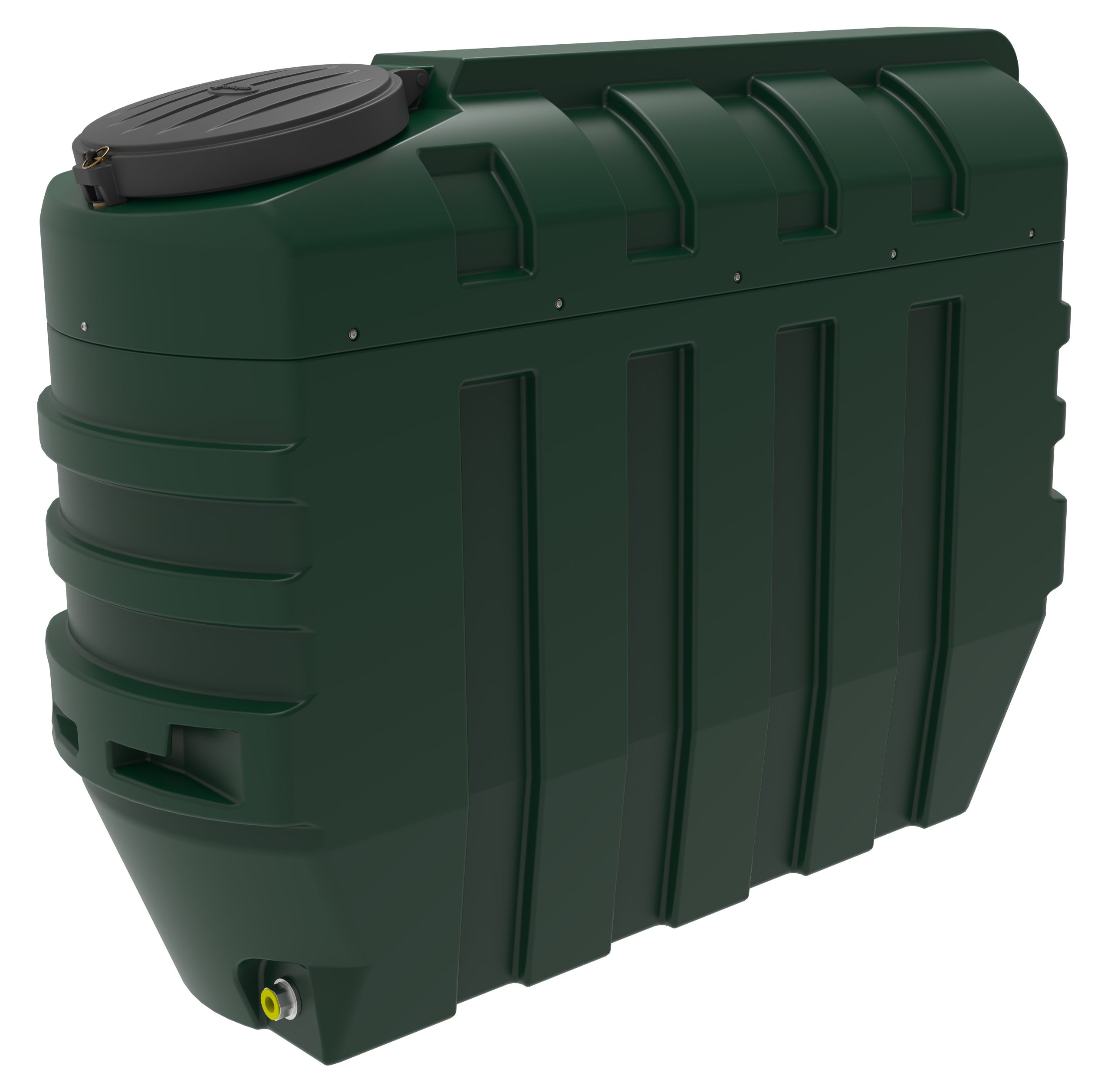

Harlequin Diamond 1230SSL Bunded Oil Tank

Description

The Harlequin Diamond 1230SSL fills the gap between the 1000SSL and 1400SSL. Its 1,230-litre capacity gives households and commercial premises useful extra storage while retaining a narrow, 700mm-wide footprint.

The base has been shaped to make more efficient use of a slab foundation, helping to reduce the number of slabs required when the tank is installed on a suitable base. Its slimline form is particularly useful beside buildings, along boundaries and in other areas where width is restricted.

Key features

• Nominal capacity: 1,230 litres
• Dimensions: 2,180mm long x 700mm wide x 1,570mm high
• Integrally bunded for secondary containment
• Rotationally moulded plastic construction
• EN 13341 approved
• Suitable for HVO heating fuel
• Manufactured in the UK by Harlequin Manufacturing Limited

Standard equipment

• 2-inch BSP male alloy fill point with cap
• 4-inch inspection opening with lockable plastic cap
• Inner tank vent
• 32mm fitting point for an optional contents gauge
• 16-inch lockable plastic manhole lid
• 1-inch BSP female bottom outlet

Please note: the Diamond specification does not include a contents gauge or fitting kit as standard. Compatible monitoring and fitting equipment can be ordered separately.

Applications

This bunded tank is intended for the above-ground storage of heating oil at homes, farms, commercial sites, industrial premises and institutional buildings. It should be installed and maintained by a competent oil-storage technician in line with the applicable installation requirements.

This model is not intended for refuelling vehicles or plant through a gravity-fed delivery system fitted with a flexible hose and trigger nozzle.
