1350 Litre Steel Bunded Diesel Tank

Description

1350 Litre Steel Bunded Diesel Tank | TAN.DIS-1350

Tank & Bund:

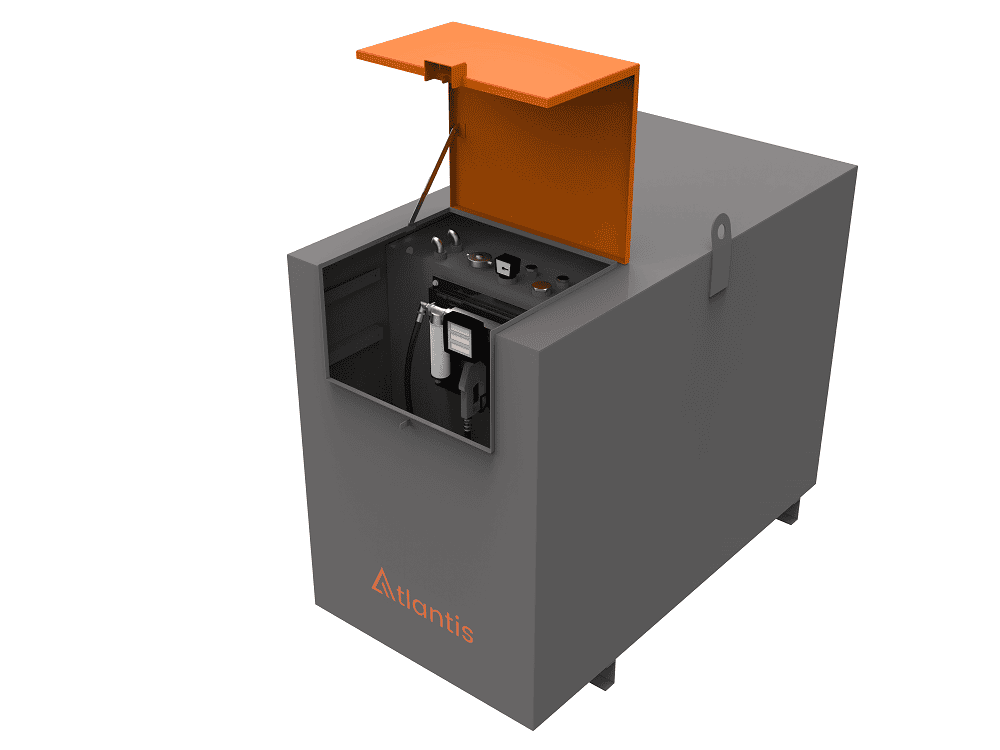

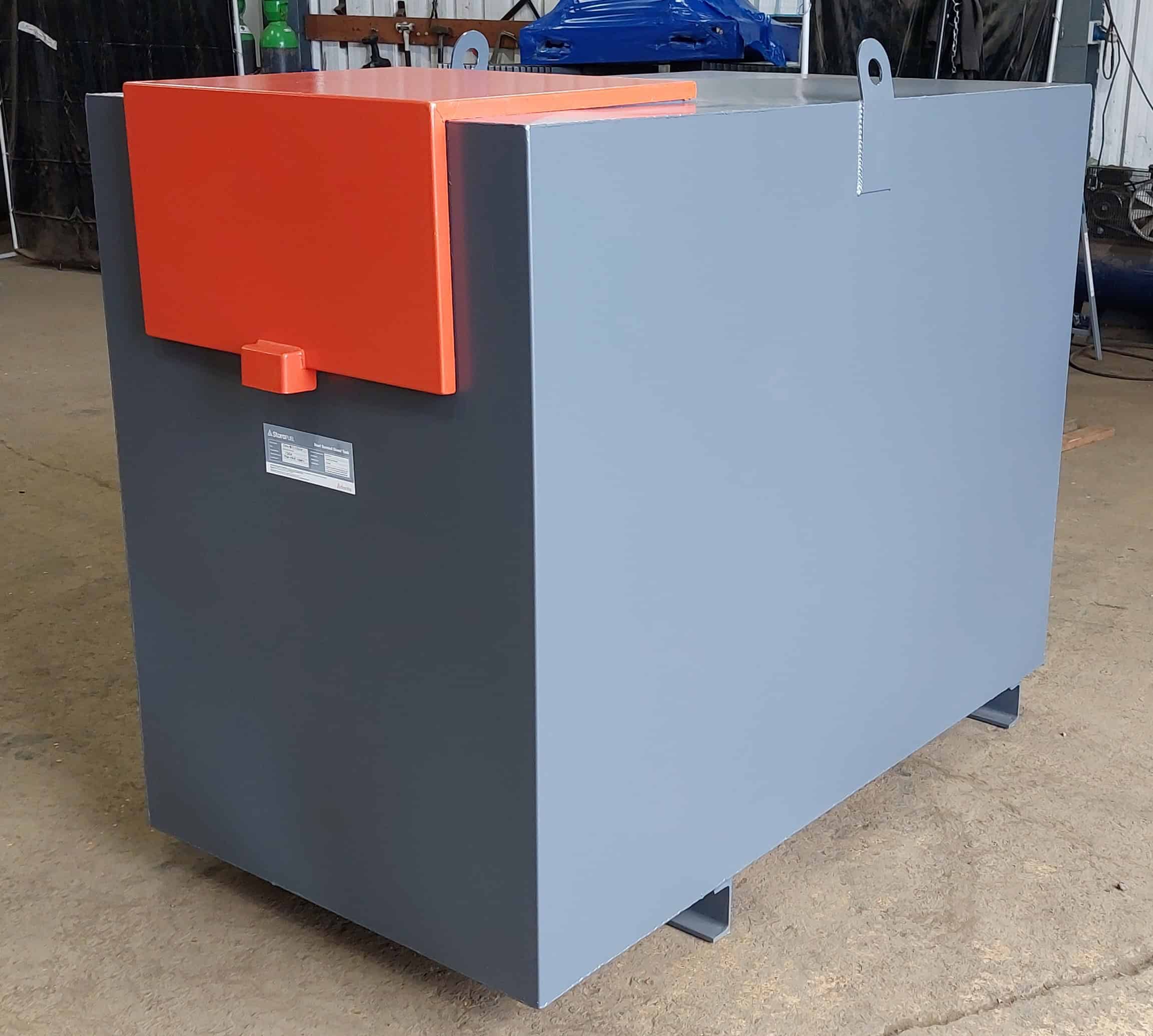

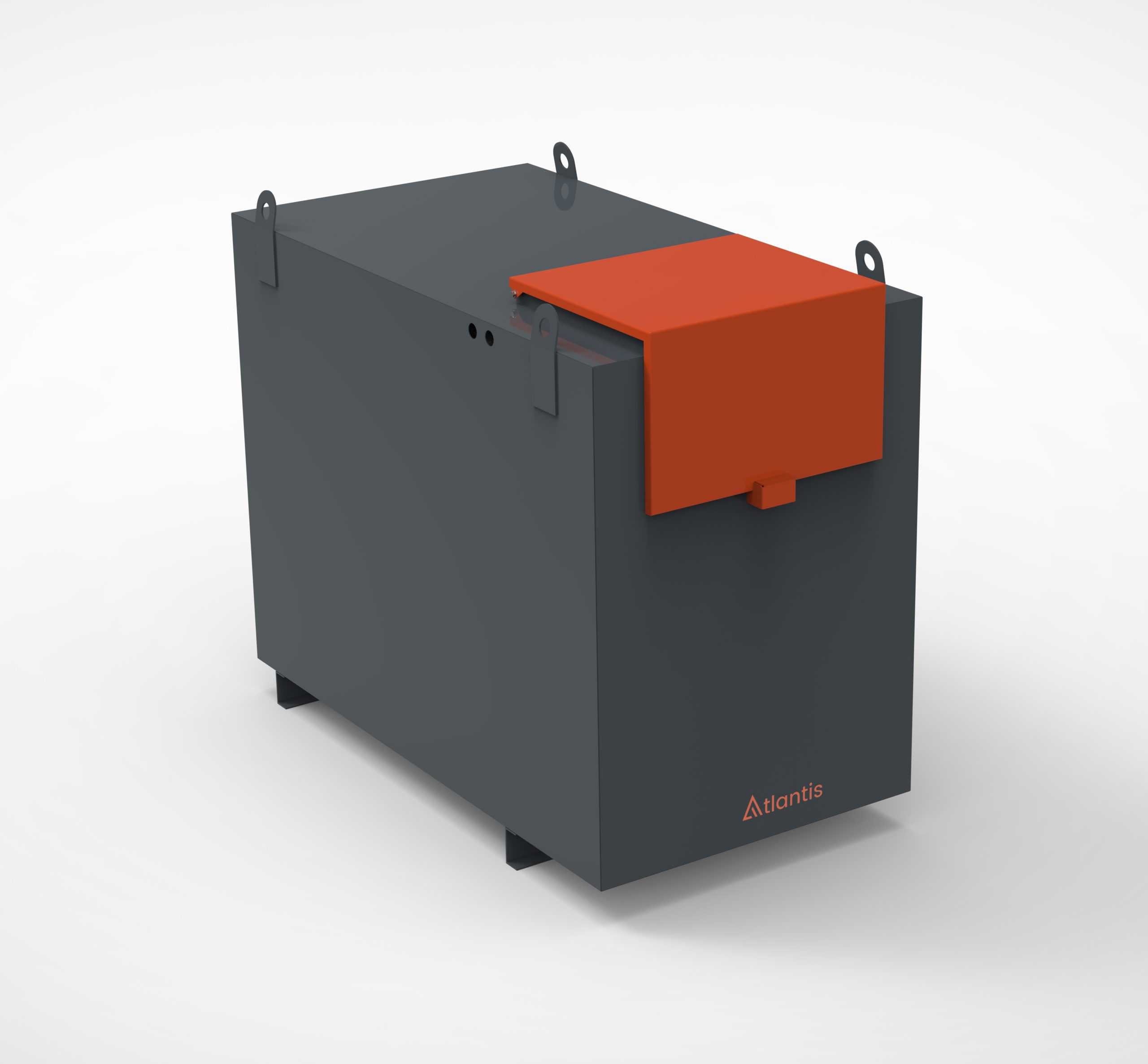

A 1350 litre steel bunded diesel tank dispenser which is suitable for commercial applications.  This tank is well suited for the construction and agricultural industry.

The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity which makes this tank suitable for both domestic and commercial installations.  This tank is suitable for the storage of Derv (white diesel) or Gas Oil (red diesel). A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail.  However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment.

Specifications:

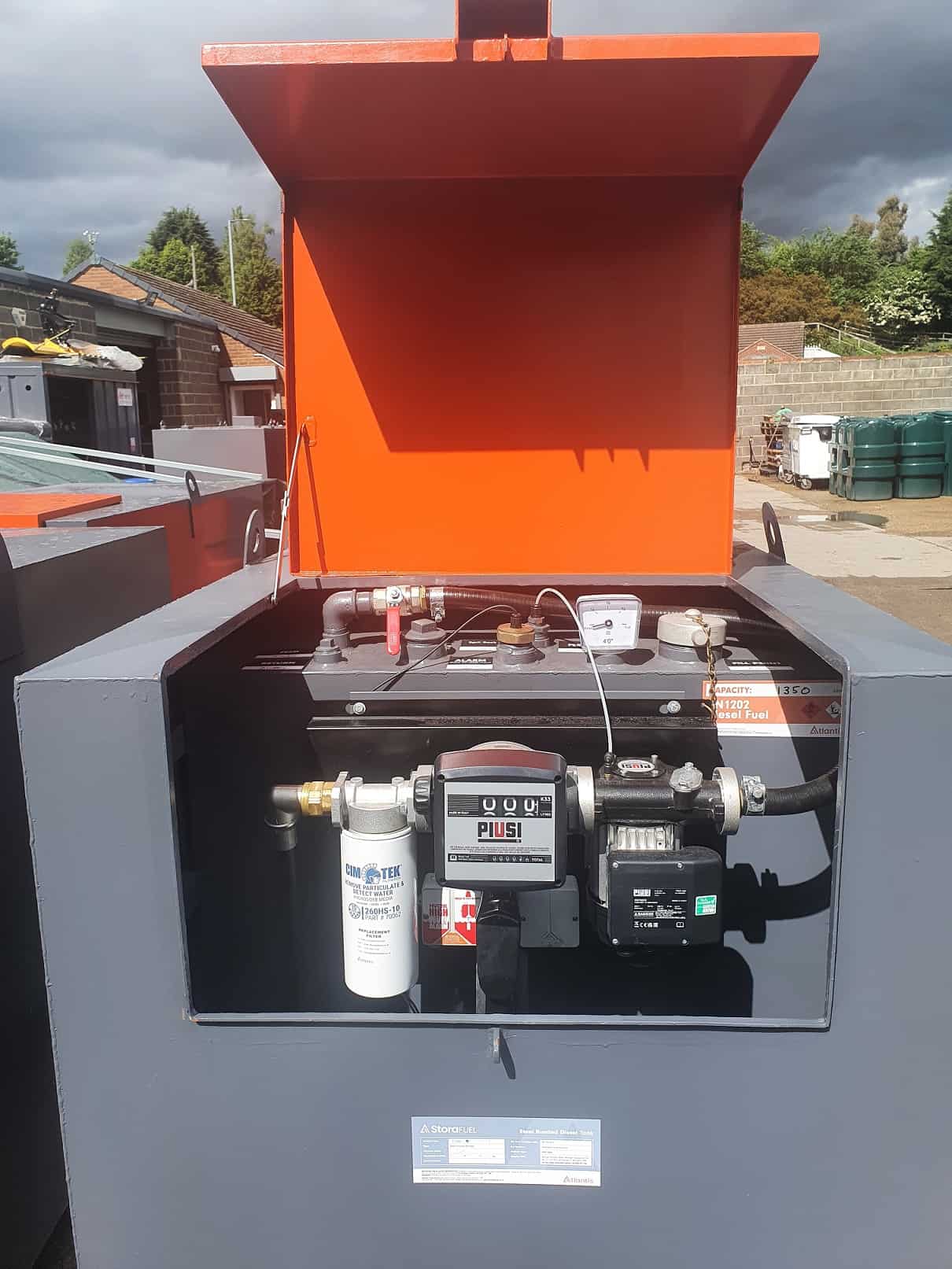

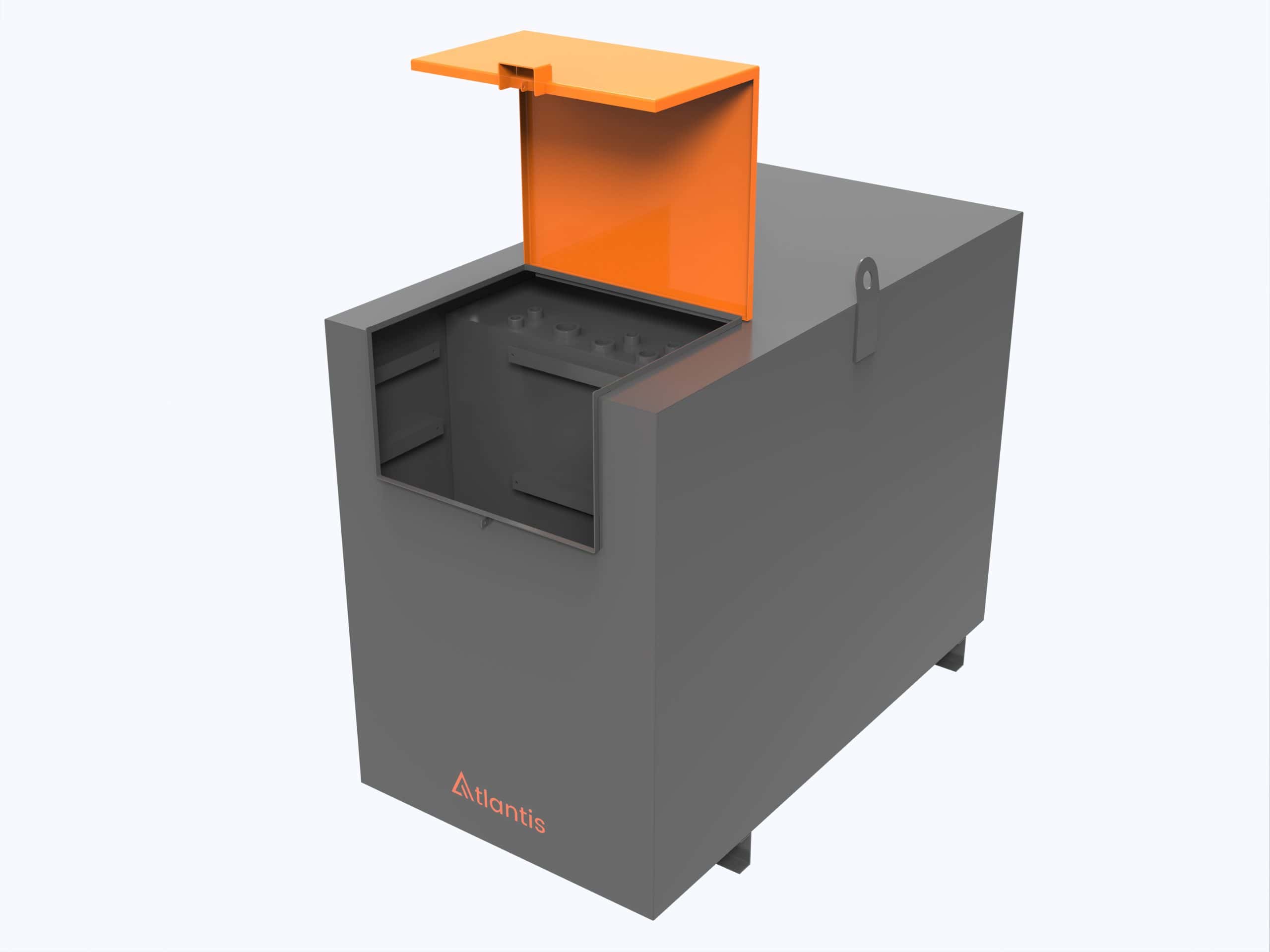

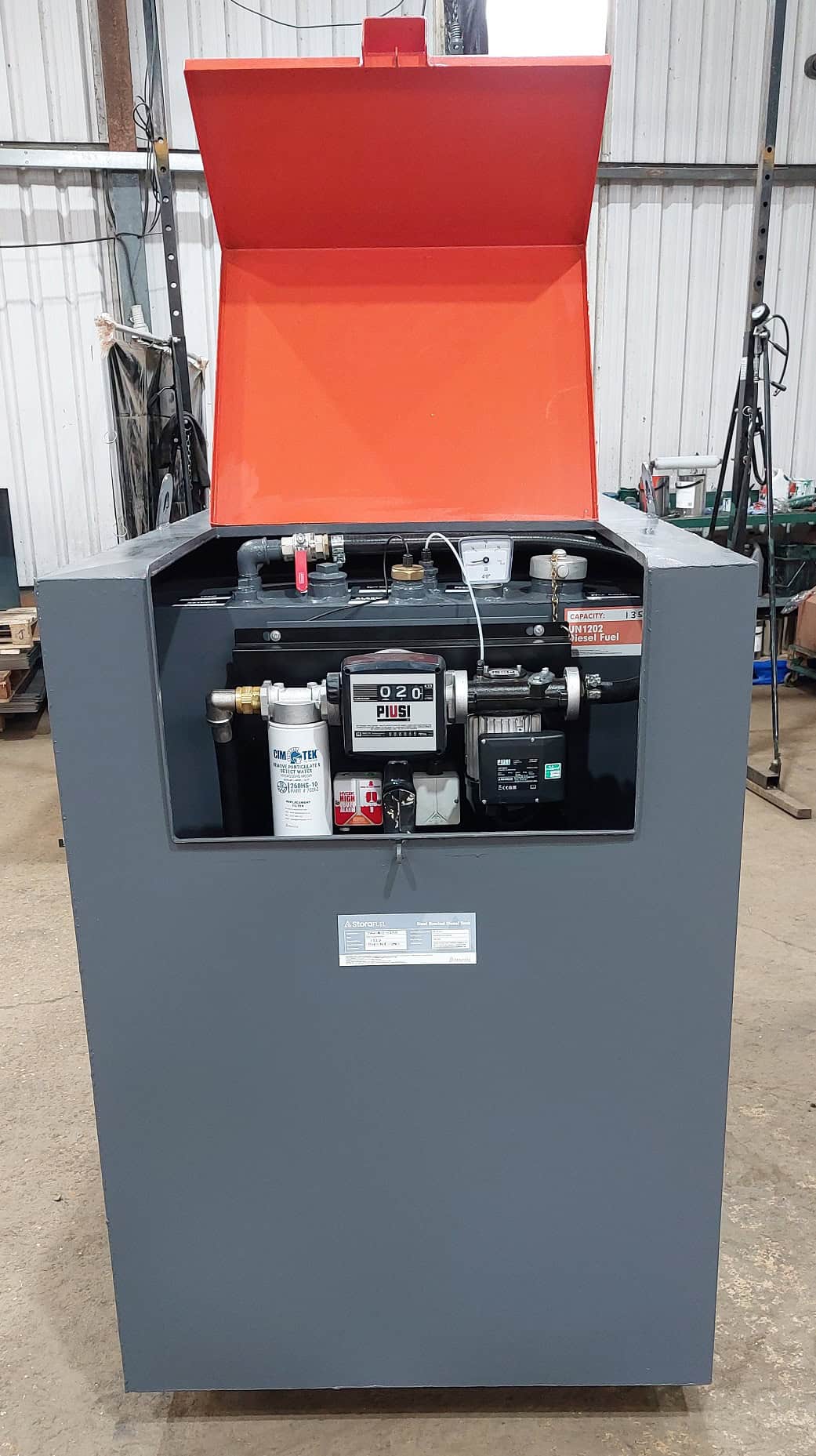

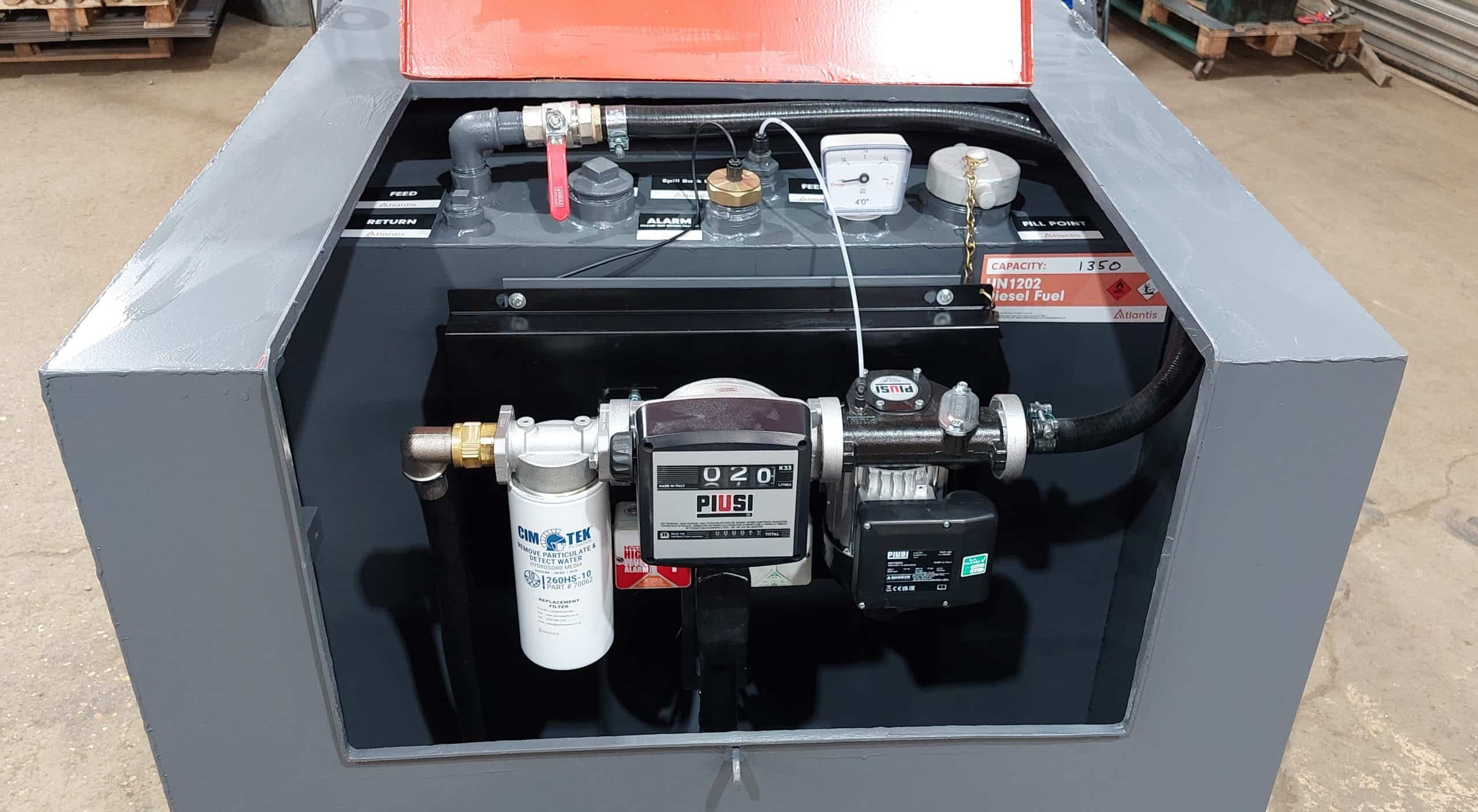

• Security cabinet – front mounted
• Lockable cabinet swing door (optional roller shutter door available)
• 2″ fill point inside cabinet, c/w aluminium cap & chain
• Tank & bund vent
• 1″ pump feed (inside cabinet)
• 1″ feed and return (spare)
• Clock face gauge
• Overfill alarm (battery powered)
• Internal tank bracing
• This tank is made in accordance with BS799pt5
• Material: Steel to BS EN 10025-2:2004 S275JR
• Outer tank forms the required bund, with capacity for 110% of the total liquid being stored.

This video explains key features, fittings and options on a 10,000 litre diesel dispenser with a dedicated security cabinet. We can fit most of the accessories mentioned in your capacity diesel dispenser:

Finish:

Surface preparation ST2. We then apply a Zinfos 340WS solvent borne high performance anti-corrosive one coat system, multi surface self-priming mid sheen topcoat (50% gloss). Applied to give a wet film thickness of 150 microns and dry film thickness of 75 microns.

• Main Tank – RAL 7015 Grey
• Door – RAL 2001 Orange
• Other colours can be requested

Whilst our Zinfoss paint is extremely robust, it is recommended that an alternative paint is used if the tank is to be located in a marine environment, please speak to our sales team for more info

Equipment Options | 1350 Litre Steel Bunded Diesel Tank

Pump Kits:

• 50 LPM 230v Piusi Pump Kit
• 70 LPM 230v Piusi Pump Kit
• 100 LPM 230v Piusi Pump Kit
• 50 LPM 110v Piusi Pump Kit
• 75 LPM 12v Piusi Pump Kit
• 75 LPM 24v Piusi Pump Kit
• 45 LPM 12v Piusi Pump Kit
• 45 LPM 24v Piusi Pump Kit
• Semi Rotary Hand Pump Kit

Electric Pump Kits, supplied with:

• 6m Hose, Water & Particle Filter (10 micron), Auto Nozzle & Mechanical Flow Meter

Hand Pump Kits, supplied with:

• 4m Hose, Water & Particle Filter (10 micron), Manual Nozzle

This tank can be paired with most fuel management systems available on the market, please contact one of our team to discuss your requirement in more detail

Dimensions:

• Length: 1750mm
• Width: 950mm
• Height: 1300mm (including bearers)
• Weight: 290kg (empty)

Compliance:

This tank is made in accordance with BS799 pt5

Warranty:

• Tank – 10 years
• Pumps & Components – 1 year

Please note: This tank is designed as a static tank and is not certified to be transported when full of fuel.  It also should be situated on a non-combustible even and level terrain/surface.

You can contact our sales team for product advice on 0330 999 1100.

Manufactured by Atlantis Tanks
